Looking for a 2WD gearbox that can handle tall dunes, big drops, steppes and the toughest terrain? The SADEV SL90-23 is the answer.
This gearbox was developed with the Dakar Rally in mind, capable of handling huge bursts of torque from powerful V8 engines as cars struggle for traction on unpredictable surfaces.
Super-polished bevel gear ratio: 9×34 or 8×35
Bevel gear cut and grinded in house on SADEV’s CNC units
Wide range of ratios available
Straight cut gears
Dog ring gear engagement
Interchangeable gear ratios
High strength carburizing steel
Gear teeth grinded with optimized profile
Shot penning on internal parts

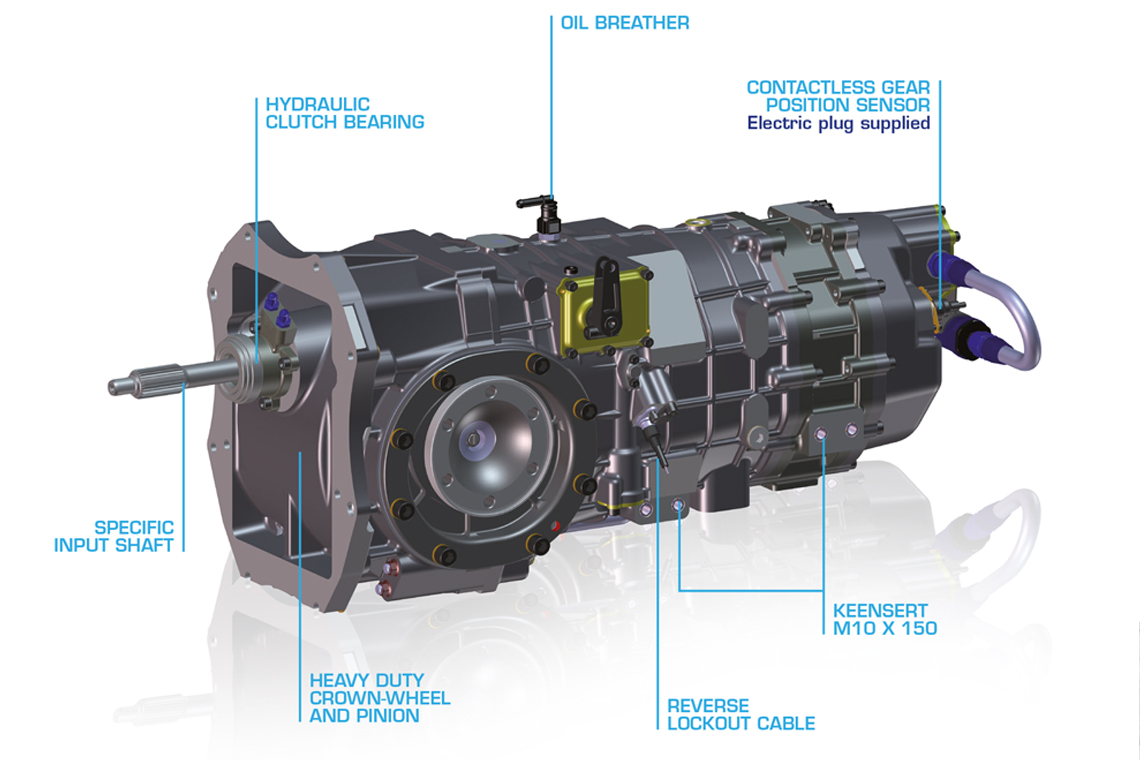

Specific input shaft
Hydraulic clutch bearing
Central limited-slip differential
Ramp and plate system – three discs type
Preload made by Belleville spring washer
Wide range of ramp plates available
Reverse lockout cable or option of solenoid
Splash lubrication system
Integrated oil pump
Directed and pressurised lubrication on the gears and bevel gear
Oil suction screen
Magnetic drain plugs
Painted AS7G aluminum casings
Assembled with spacers and studs
Weight (input shaft included): 85kg (187lbs)
Gear display
Mounting plate
Gearlever
Driveshafts
